× Available for patients and their carers for educational purposes. Always consult your Healthcare Professional regarding treatment options. The BD PureWick™ Urine Collection System is intended for use only with the BD PureWick™ Female External Catheter.

ALWAYS READ THE LABEL AND FOLLOW THE DIRECTIONS FOR USE.


Setting up the BD PureWick™ Urine Collection System



Step-by-step instructions

1. Plug power cord into the device outlet and into the A/C power outlet. Note: Make sure the power switch is turned off.

Set up - step 1.

2. Place the collection canister in the base and press down firmly on the lid of the device, making sure the lid is sealed.

Set up - step 2.

3. Optional: Slip privacy cover onto the canister prior to placing canister into base.

Set up - step 3.

4. Attach pump tubing to the BD PureWick™ Urine Collection System connector port and the connector port on the collection canister lid.

Set up - step 4.

5. Attach the elbow connector to the collector tubing and connect elbow connector to the connector port on the collection canister lid.

Set up - step 5.

6. Connect other end of collector tubing to a BD PureWick™ Female External Catheter.

Set up - step 6.


Placing the PureWick™ Female External Catheter



1. Perform perineal care and assess skin integrity.

Placement - step 1.

2. Separate legs, gluteus muscles, and labia. Palpate pubic bone as anatomical marker.

Placement - step 2.

3. With soft gauze size facing patient, align distal end at gluteal cleft.

Placement - step 3.

4. Gently tuck soft gauze side between separated gluteus and labia.

Placement - step 4.

5. Turn the device power switch on.

Placement - step 5.


Removing the BD PureWick™ Female External Catheter



1. Fully separate the legs, gluteus, and labia.

Removal - step 1.

2. To avoid potential skin injury upon removal, gently pull the BD PureWick™ Female External Catheter directly outward.

Removal - step 2.

3. Ensure suction is maintained while removing the BD PureWick™ Female External Catheter.

Removal - step 3.



Maintenance

Replace the BD PureWick™ Female External Catheter at least every 8 to 12 hours or if soiled with feces or blood. Assess skin for compromise and perform perineal care prior to placement of a new BD PureWick™ Female External Catheter.

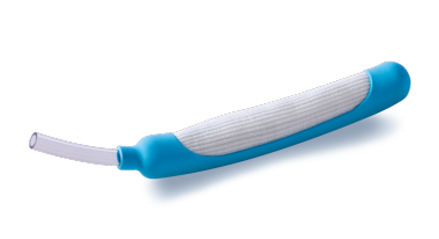

PureWick Female External Catheter


Instruction Videos

Part 1. Introduction

Part 2. Set up

Part 3. Operation and placement

Part 4. Discard and cleaning
